Product Description
Tabscan T1 Bluetooth OBDII Scan Tool for Android, portable size easy to carry, support ISO 15765-4 CAN, ISO 9141-2, ISO 14230-4 KWP2000 protocol, connection with your Android smart phone/tablet via Bluetooth, detecting engine operating condition and auto diagnose engine exhaust emissions.
Tabscan T1 Bluetooth OBDII Scan Tool for Android Portable Smart Diagnostic Box
TOP 5 Reasons to Buy Tabscan T1:
1. Read and clear your Check Engine Light, Widely car model coverage: Support all vehicles that applied to ISO 15765-4 CAN, ISO 9141-2, ISO 14230-4 KWP2000 protocol
2. High Speed Bluetooth connection: Bluetooth 4.0 high speed transmission
3. As easy to use as a code reader with all the capabilities of an expensive handheld scan tool, plus the benefits of your smartphone or tablet (free app updates, portability, saving data, interactive graphing of live data)
4. One click online update
5. Convenient and compactable size, easy to carry
Tabscan T1 Features:
1. Support diagnose report
Diagnose report will be generated automatically after you run the car scanning, report is easy to found from the app homepage.
Results are friendly for users to understand, obvious to see car status.
2.Support ISO protocol DTC reading and clearing
Friendly for users to use, even though you don’t know which protocols your car is, you can click scan on app,it will recognize your car protocol automatically;
generally it can recognize most of the ISO protocol vehicles(ISO 15765-4 CAN, ISO 9141-2, ISO 14230-4 KWP2000);
then it will enter the select module engine and transmission for you to choose.
3.OBD diagnostic service
- Service 0x01-request current powertrain diagnostic data
- Service 0x02-request powertrain freeze frame data
- Service 0x03-request emission related diagnostic trouble code
- Service 0x04-clear/reset diagnostic information related to emissions
- Service 0x05-request oxygen sensor monitor test results(achieved in service 0x06)
- Service 0x06-request on-board monitoring test results for a specific monitored system
- Service 0x07-a diagnostic trouble code related to emissions is detected in the requested driving cycle
- Service 0x08-request for vehicle control system, test or components(currently not support)
- Service $09-request for vehicle information
- Service 0x0A-request a permanent diagnostic trouble code associated with emissions

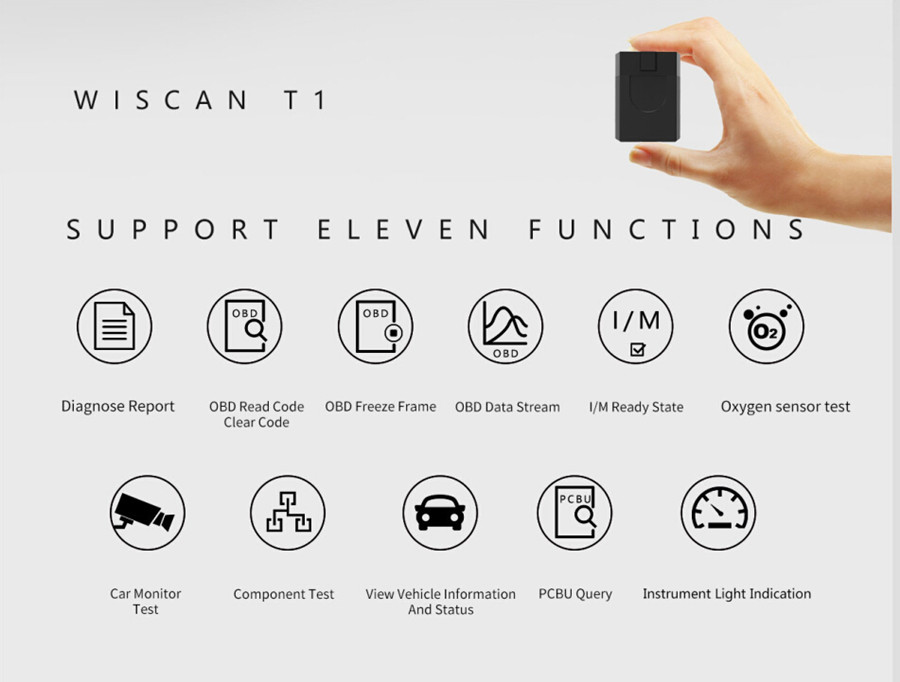

Tabscan T1 Function:
Inside the diagnostic menu there are 7 functions for customer to choose
1.DTC&FFD (mode 03/07/0A & mode 02)
2.I/M readiness
3.Live data (mode 01)
4.On board monitor(Mode 06)
5.Component test(Mode 08)
6.Vehicle information(Mode 09)
7.Vehicle Status
8.Instrument lights
9.PCBU inquiry
PCBU code is 5 characters, user can understand the fault code meaning through this function.
The first character is P,C,B,U; the second character is 0,1,2,3; the others are 0-9, A-F.
Package includes:
1pc x Tabscan T1 Portable Smart Diagnostic Box
